Flat Pack Container House
Application:
Prefab flat pack tiny container houses are used as kiosks, guardhouses, sentry boxes, offices, hotels, carports, and so much more, can also be used for site office, labor camping, workers living house, storage, refugee housing.
Description
Flat pack fast building container house is a kind of modular prefab structure, with a high-quality galvanized steel structure system and sandwich panel that can be insulated with EPS, rock wool, and glass wool. It is mainly used as a temporary building. Each container unit's standard size is 20ft. Flat pack container house has wide usage. You can use them separately, combine them into a bigger house, or stack them up to 3 or 4 floors. The roof and floor have been finished well before shipment, so users just need to put them together and then fill them with the panels. Usually as a stand alone unit or can be grouped flexibly. It is standard designed, industrialized produced and with long life span. It can be installed conveniently, easily transportable and reused. It requires minimal and basic foundation and can adapt to the environment effectively.
Flat pack prefab container house is flexible and with diverse designs to optimize temporary modular space. Flat pack container home can expand horizontal and vertical space, which is especially attractive in narrow spaces such as large cities.
Specifications of Prefabricated Flat Pack Modular House
Size (L×W×H): External Size: L5950×W2438×H2896
Internal Size: L5795×W2225×H2520
Frame: Q235 Strip Steel, hot-rolled galvanized, anti-corrosive coating
Thickness: 2.5, 2.7, 3.0 mm
Corner post: Galvanized, anti-corrosive 2.5, 3.0 mm
Roof: Roof frame is preinstalled
1) Colored-steel sheet (0.5mm)
2) Glass wool insulation (100mm) Fire Rating: A
3) Purlin: Section C80 Galvanized Steel (1.2mm)
4) Ceiling: Steel self-connected ceiling (0.5mm colored-steel)
Wall: V950 50mm Rock wool sandwich panel
1150 75mm glass fiber sandwich panel
0.5mm steel sheet Fire rating: A
Floor: Bottom frame is preinstalled
1) 18mm fiber cement board
2) 2.0mm PVC leather
3) 100mm glass wool insulation optional
Flat Pack Construction Container House Features
Faster construction compared to traditional construction, prefabricated flat pack container houses are faster to build because the components of the house are prefabricated in a factory and then assembled on site.
Lower costs prefabricated houses are often cheaper than conventional construction because they use cheaper materials and take less time to build, so labour costs are lower.
Higher quality the components of prefabricated flat pack container houses are manufactured in a factory, so quality can be controlled more accurately and quality checks carried out in the factory are more thorough.
More environmentally friendly the materials used in flat pack container houses are more environmentally friendly as they use less material, have less waste and can be recycled and reused more easily.
More flexible design modular container houses are more flexible in design and can be customized to meet the specific needs and preferences of the client.
Better energy efficiency prefab houses can be more easily designed and built to maximise energy efficiency and can use the latest renewable energy technologies.
Application of Temporary Flat Pack Container House
Prefab flat pack tiny container houses are used as kiosks, guardhouses, sentry boxes, offices, hotels, carports, and so much more, can also be used for site office, labor camping, workers living house, storage, refugee housing.

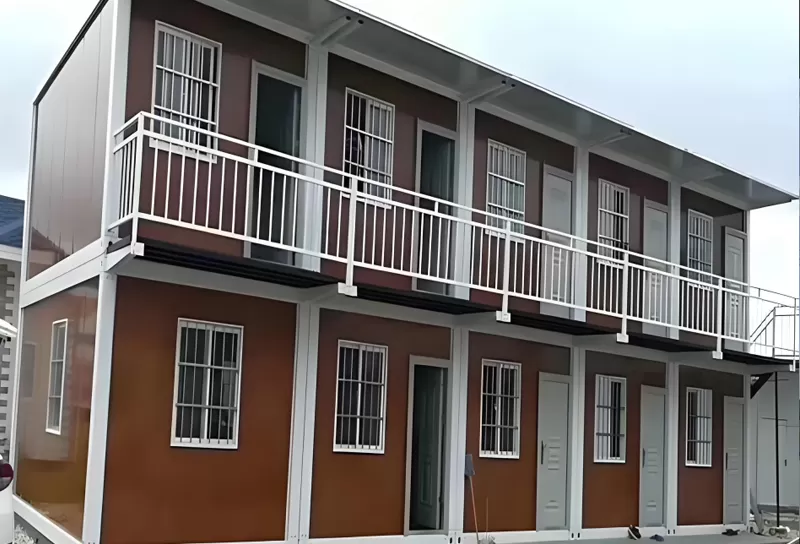

Flat pack container house

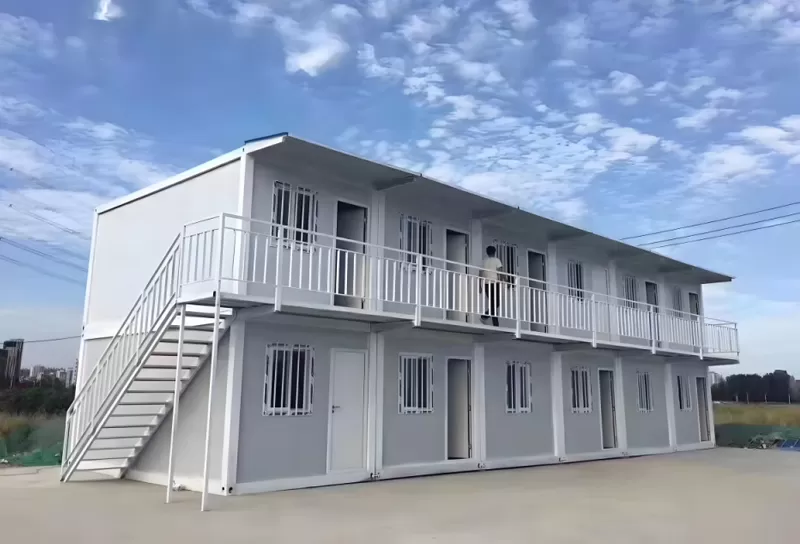

Flat pack container house

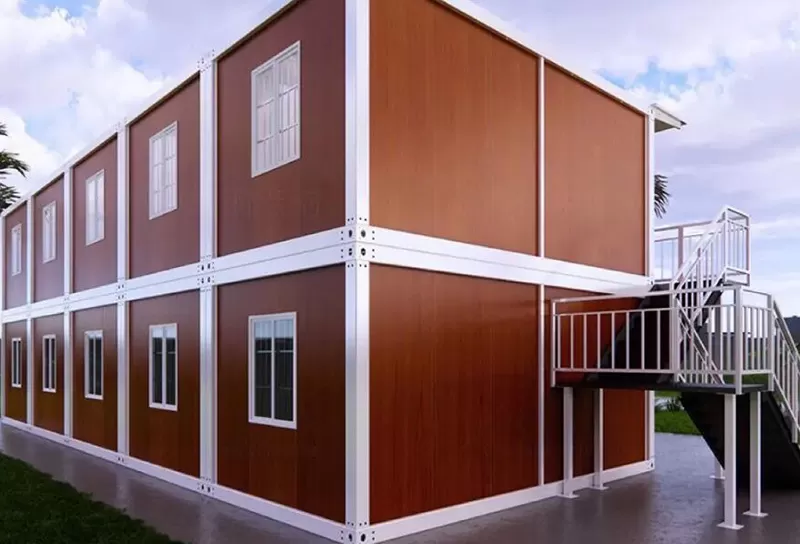

Flat pack mobile container house

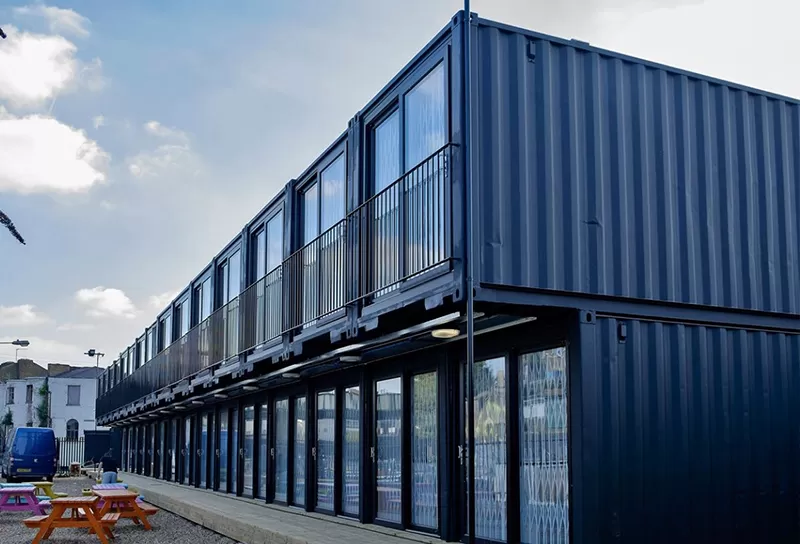

Luxury flat pack container house

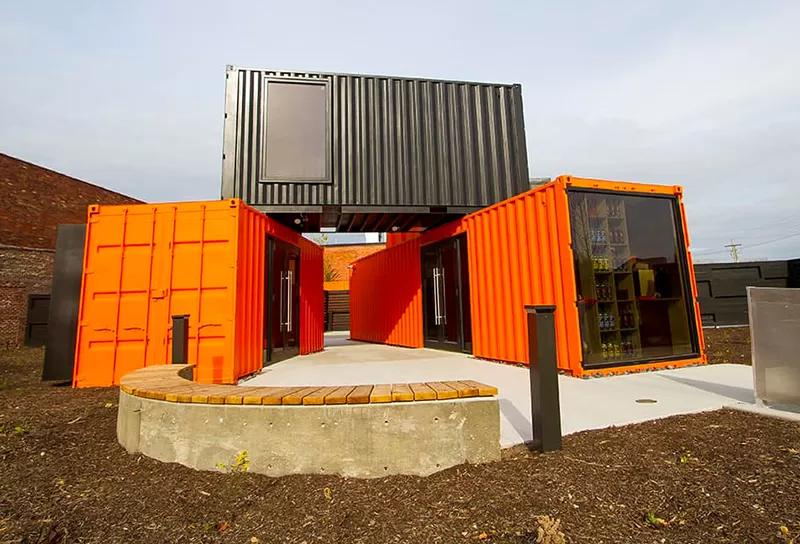

Luxury flat pack container house

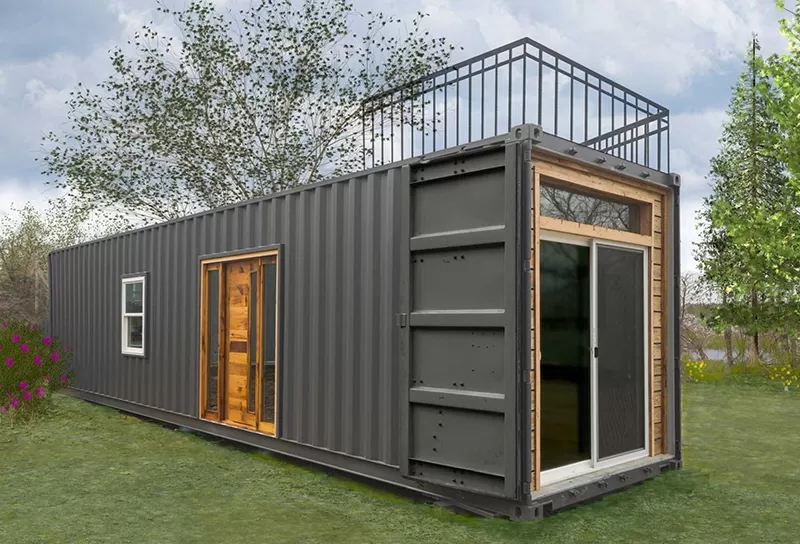

Prefab flat pack container house

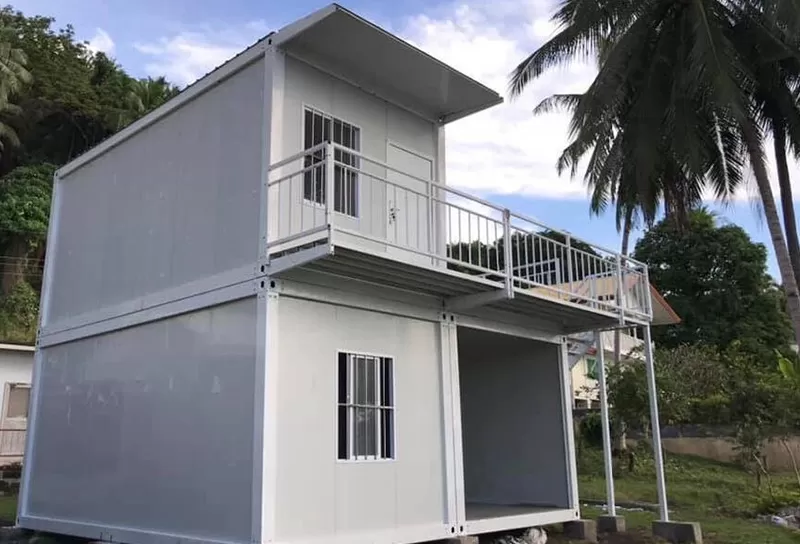

Tiny flat pack container house
Tiny flat pack container house
