Mobile Foldable Container House

Applications:

Prefab foldable container house is suitable for office, accommodation, receiving, storage, temporary turnover, etc., it can also be used for villas, resorts, fieldwork (camping, drilling,construction and mining) housing, hotels, organic, kiosks, scenic area overlay and emergency relief, command, resettlement housing and many other fields.

Inquire Now Next Product

Description Specifications Features Applications

Description

Foldable container houses have made some improvements on the basis of ordinary container house. It can be folded so that it will save room when loaded into shipping container. In other words, one 40HQ can load more folding containers than normal containers. And its lifespan is longer than flat pack container house. This kind of folding container usually is used to be living house because of its competitive price.

A folding container house can be quickly installed in 4 minutes and is the best solution for disaster reconstruction and construction site housing. Folding container houses are cheap, easy to install, fireproof, waterproof, and soundproof, and are widely used in construction site offices dormitories, resettlement houses, hospitals, camps, etc.

Specifications of Folding Mini Container Prefab House

Exterior size: 5800mm(L) *2500mm(W)*2450m(H)
Interior size: 5650mm(L)*2350mm(W)*2230mm(H)
Fold size : 5800mm(L)*2500mm(W)*440mm(H)

● The main structure of the house unit is a steel frame structure.
● Hot-dip galvanized Q235 steel components are applied and welded precisely.
● The surface treatment adopts hot-dip galvanized coating and electrostatic powder spraying,achieving good corrosion resistance for the structure.

Standard door: Width 970mm*height 1970mm, 0.4mm steel security door.

Standard window: Double-glazed glass, main and sub frame sliding windows.

Standard electric appliance: Switch, air switch, fuse box, 25W strip light, socket (according to different market standards).

Electric circuit: 4mm² main line, 1.5mm²lighting line, 2.5mm²socket line and 1.5mm²ground line.

Front and back wall: 65mm EPS panel

Side wall: 50mm EPS panel

Roof: 75mm glass silk wadding roll

Features of Folding Mobile Modular Container House

Compared with other prefab buildings, the price is cheaper and the construction time is the shortest.

The folding container house can be folded, which means that it is very convenient to transport and can be reused.

The installation can be completed quickly in 4 minutes with the assistance of a crane, especially for emergency housing projects.

Ready for immediate occupancy without interior renovations.

Soundproofing, thermal insulation, heat insulation, fireproof, waterproof.

Different wall panel colors can be customized.

Transportation: The latest model adopts a new pulley design, which is convenient for loading and unloading and avoids wear and tear.

Support customization of various colors, besides regular white, we can also provide any color you like.

Folding Container House Installation Steps

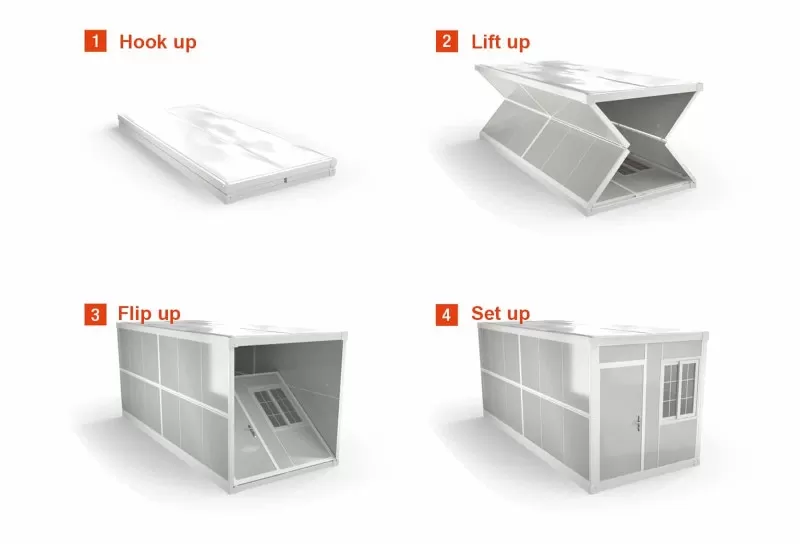

Installation Procedure

Only 3 people for 10 mins can complete a house.
1. Lift the main frame;
2. Place support rods in the middle of the Container house;
3. Push one wall apart and fix it with the fastening screws;
4. Push the other wall with the door open and tighten the screws.

Folding Prefabricated Container House Applications

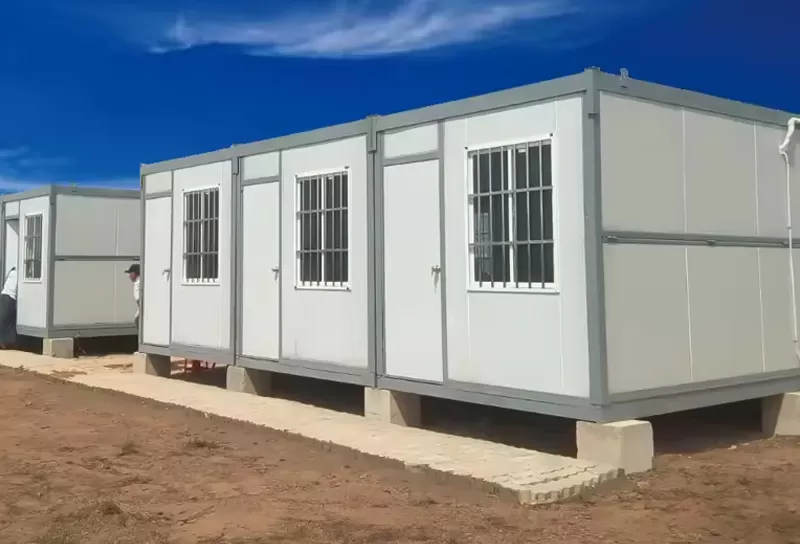

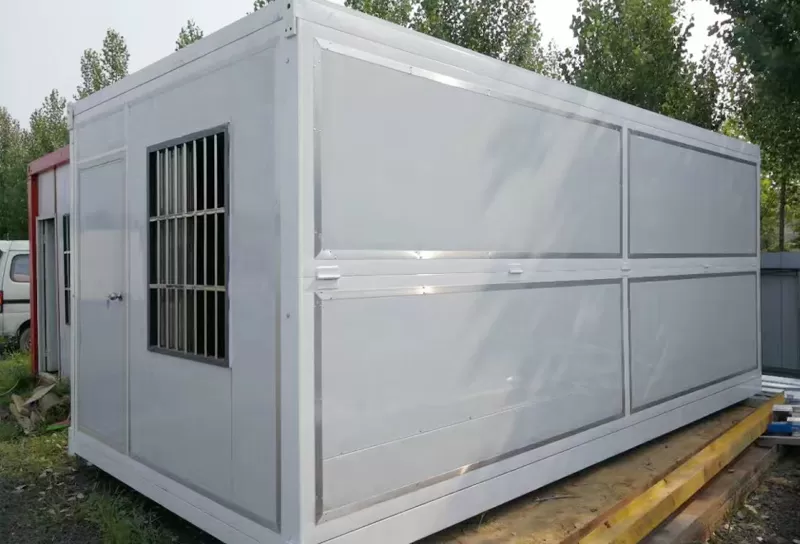

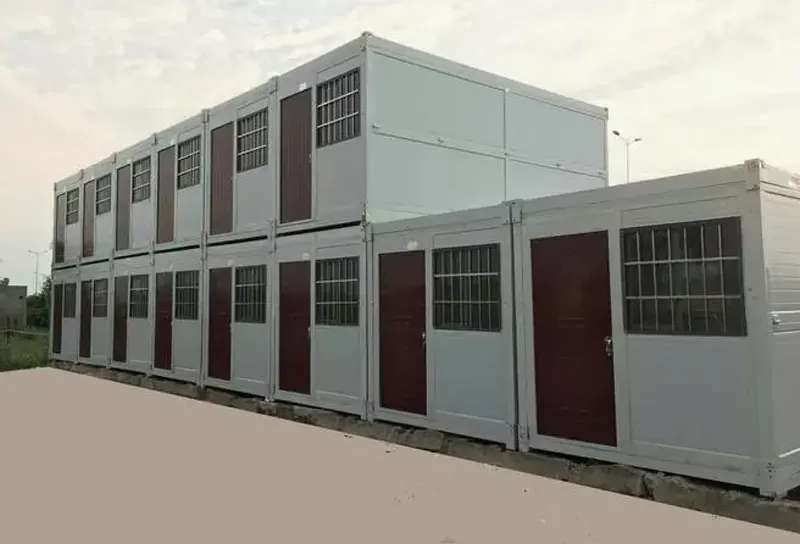

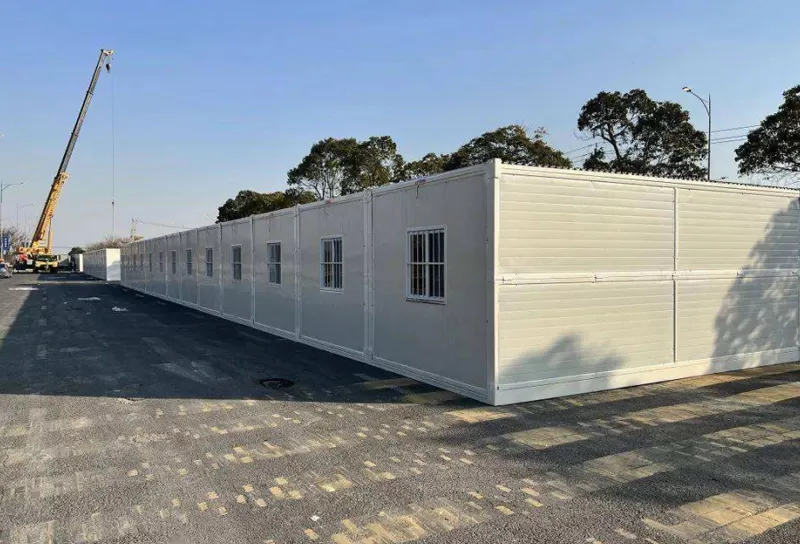

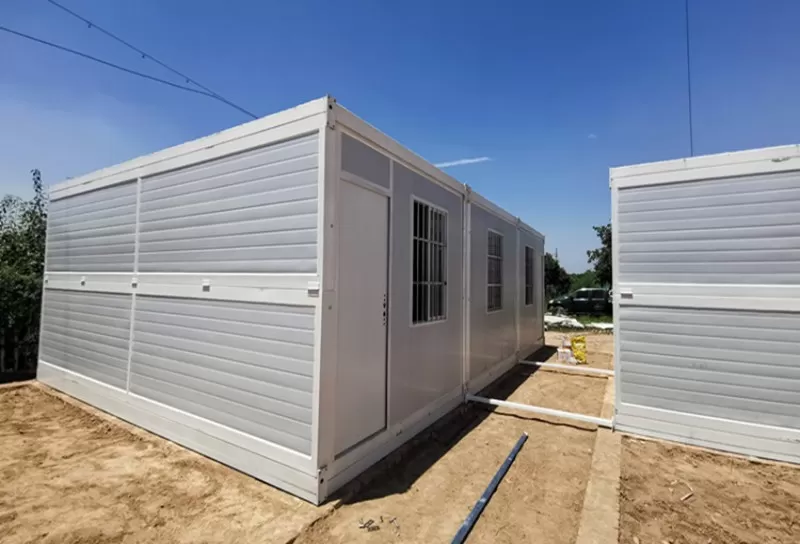

Folding container house

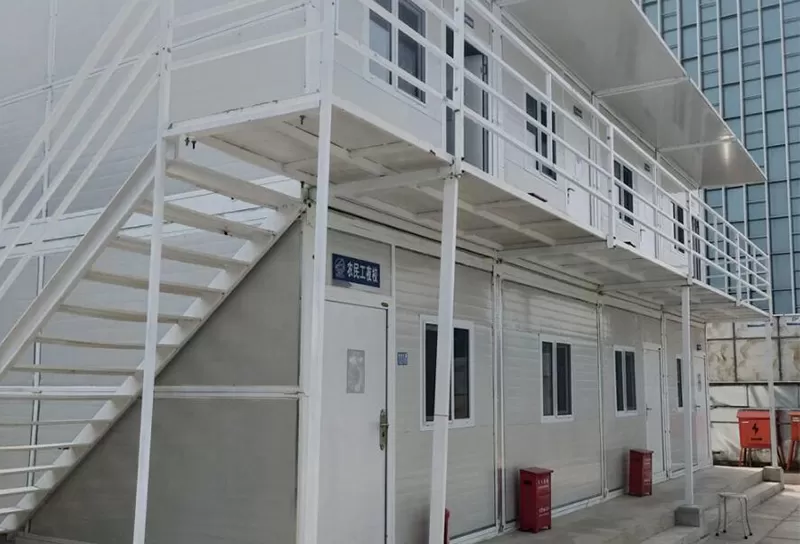

Mobile foldable container hosue
