Folding Container House
Application:
This product is widely used as office, accommodation, receiving, storage, temporary turnover, etc.,
Product Description
Folding container house reflects the advantages of this kind of house in terms of closure, safety, windproof, waterproof, anti-corrosion, cold-proof, shock-proof, sound insulation and heat insulation, and repeated use.
Technical Parameter
(1).Size: GP20, GP40 and HP40 of shipping container
(2).Wind Resistance: Grade 12
(3).Wall permitted loading: 0.6KN/ m2
(4).Ceiling Permitted live loading: 0.5 KN/m2
(5).Wall Coefficient of thermal conductivity: K=0.442W/mk
(6).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Steel framework
(1).Material: steel material Q345, thickness: 3.5mm,for top beam frame. Base beam frame and column.
(2).Surface working: epoxy painting,two bottom and two surface.
(3).Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
(4).Forklift openings: size 100*250mm, distance is 1200mm
Floor
(1).External wainscot: Flat galvanized color steel sheet, 0.5mm thickness
(2).Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.
(3).Warm proof Insulation layer:
(a)75mm rock wool
(b)18mm bamboo plywood
(c)2.0mm PVC floor leather for living rooms floor;

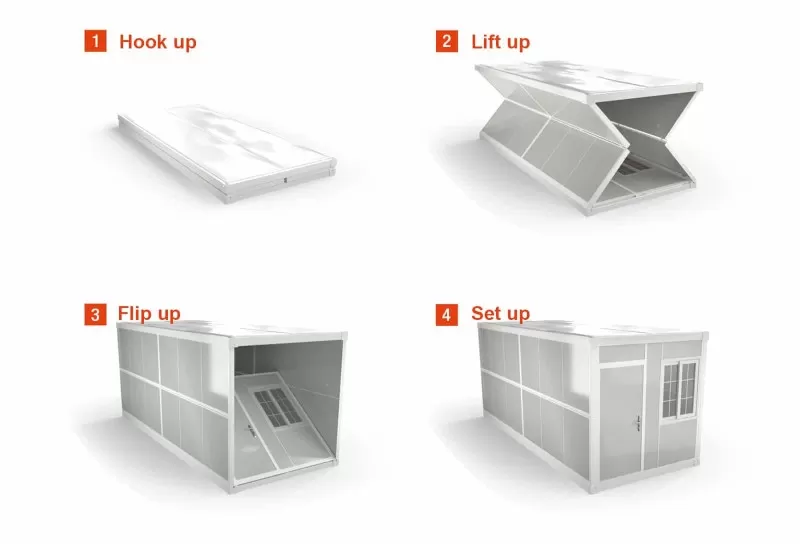

Installation Procedure
Only 3 people for 10 mins can complete a house.
1. Lift the main frame;
2. Place support rods in the middle of the Container house;
3. Push one wall apart and fix it with the fastening screws;
4. Push the other wall with the door open and tighten the screws.
Advantages
1
Fast installation:assemble only need 5 minutes/set, save 95% labor cost;
2
Anti-rust: all material use hot galvanized steel;
3
Waterproof: without wood ceiling, wall, floor;
4
Fireproof: Fire rating A grade;
5
Strong floor: use fiber cement board not plywood;
6
Simple foundation: just need 6pcs concrete block foundation for 20ft;
7
Wind-resistant (11 level) and anti-seismic (9 grade).
Application
This product is widely used as office, accommodation, receiving, storage, temporary turnover, etc.,
it can also be used for villas, resorts, fieldwork(camping, drilling, construction and mining)housing, hotels, organic, kiosks, scenic area overlay and emergency relief, command, resettlement housing and many other fields.

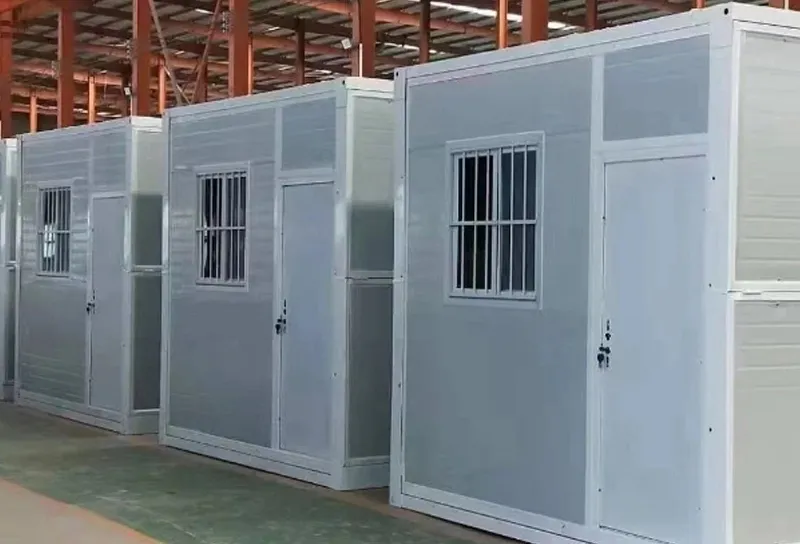

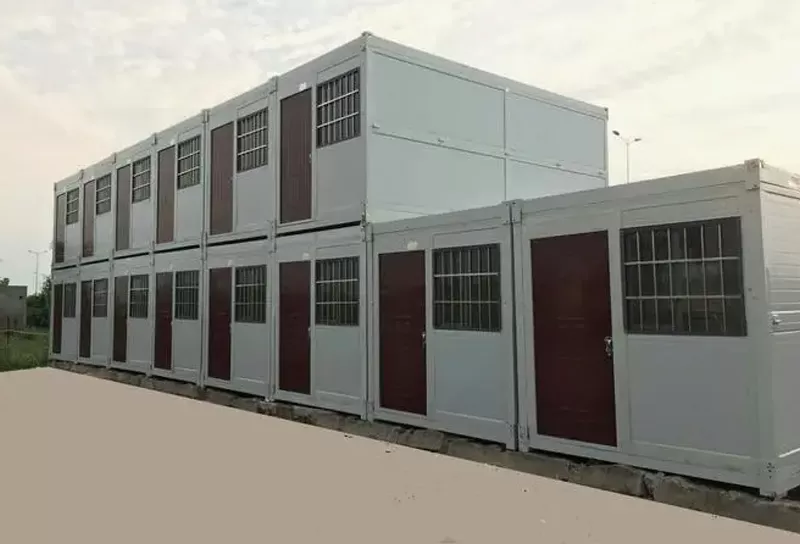

Folding container house

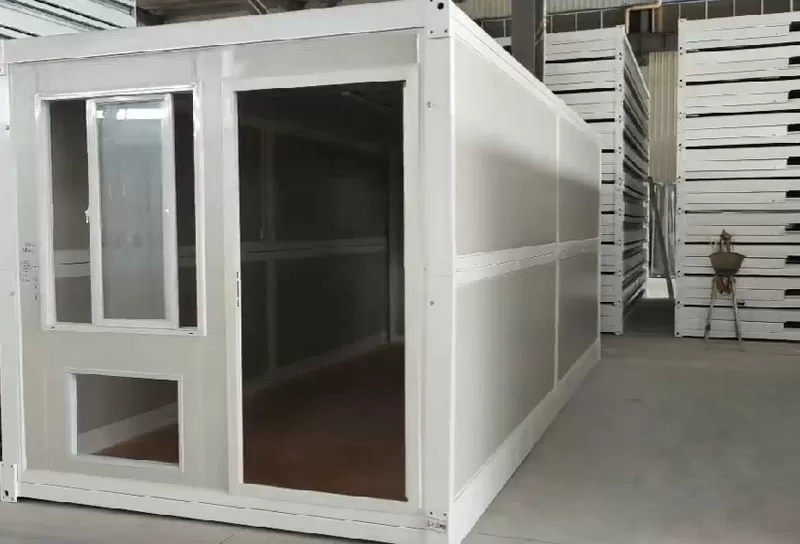

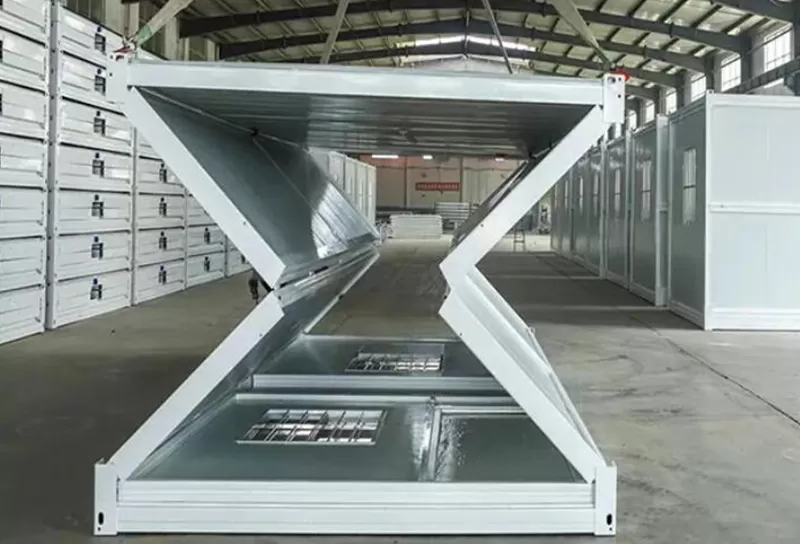

Folding container house

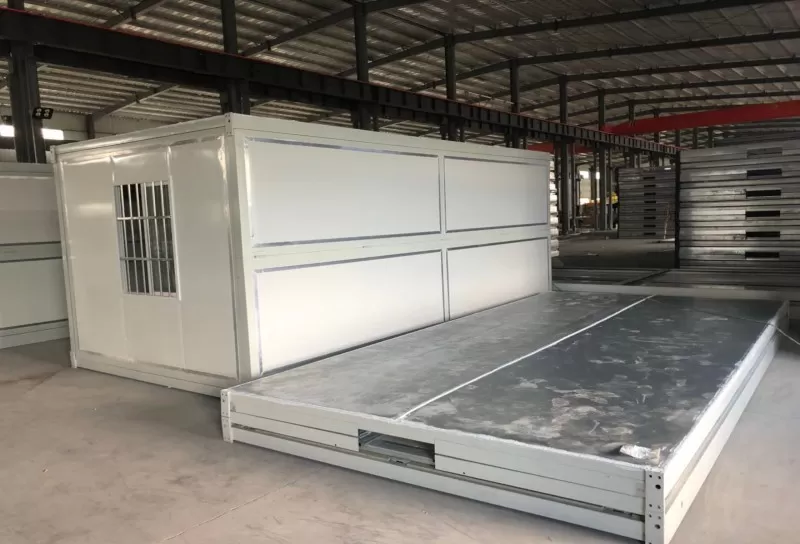

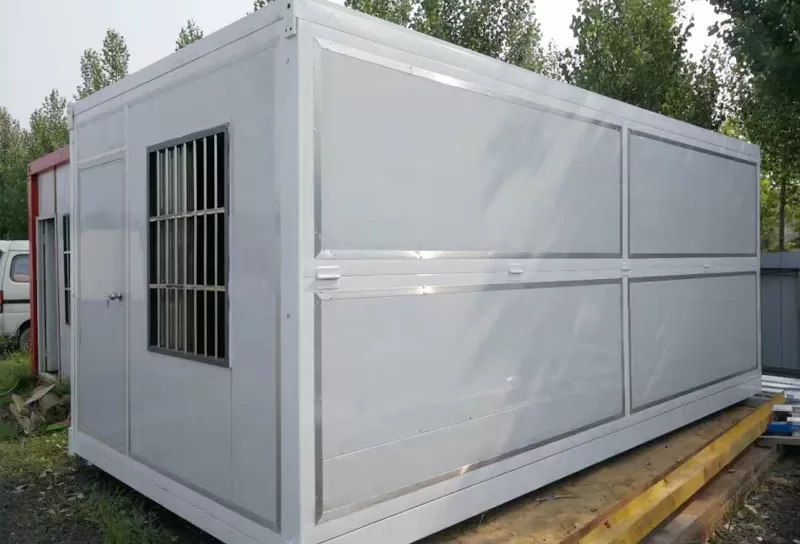

Folding container house

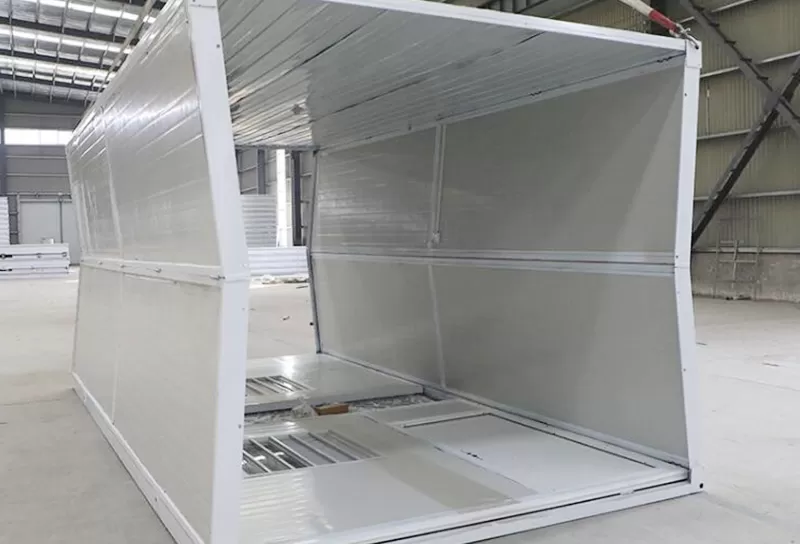

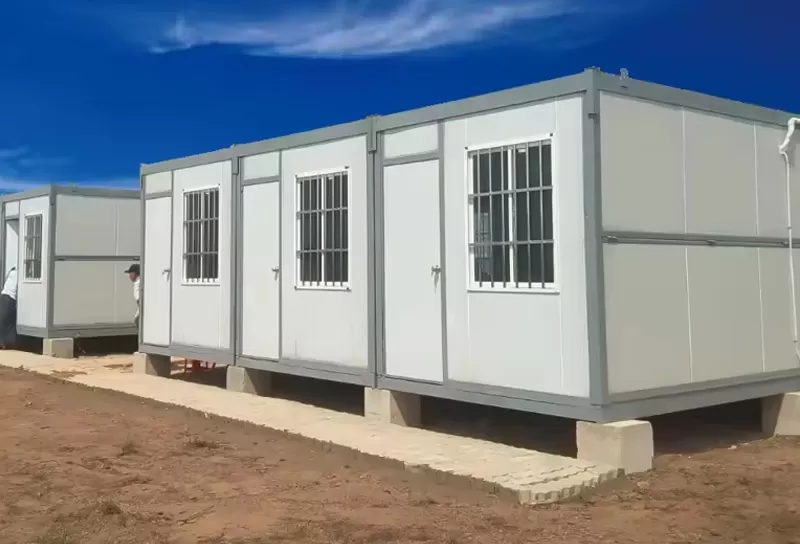

Folding container house

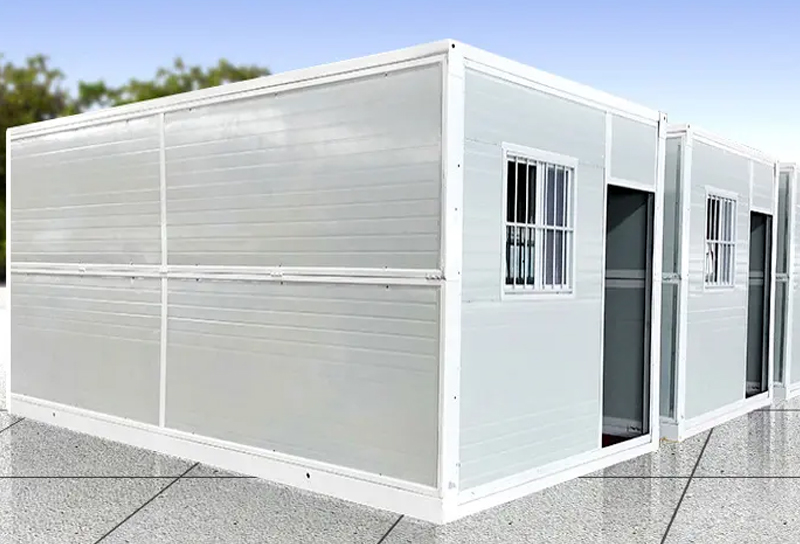

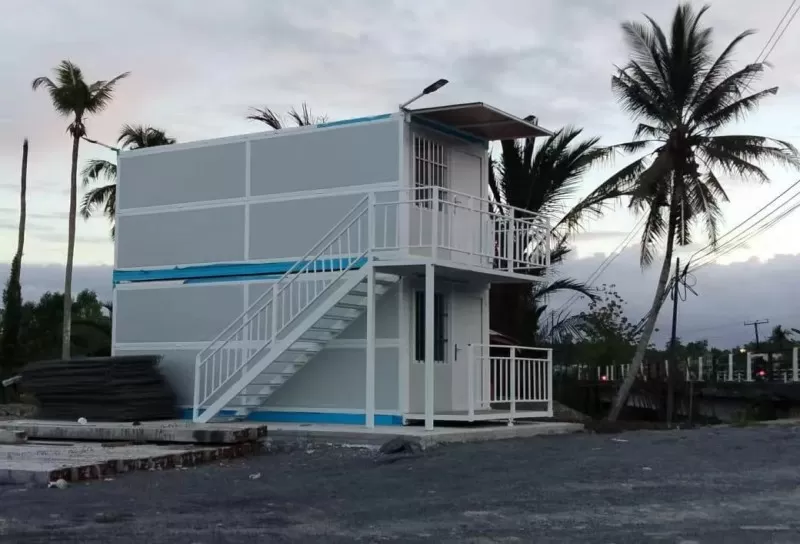

Folding container house

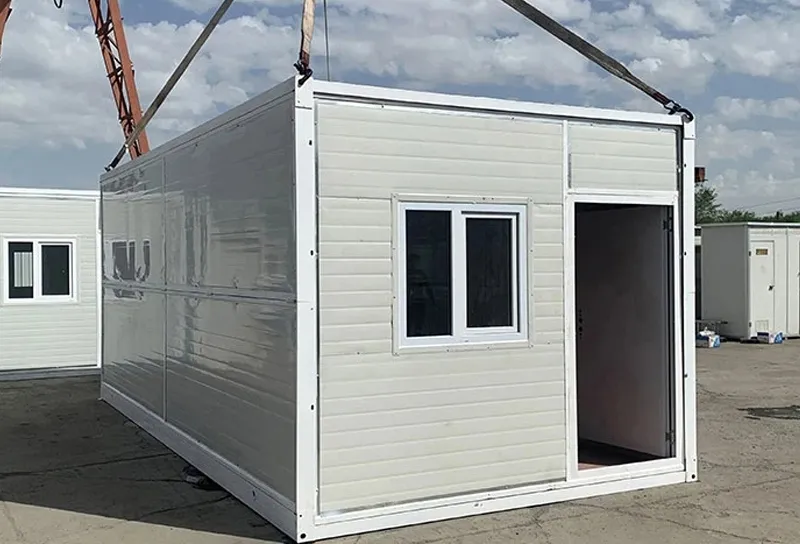

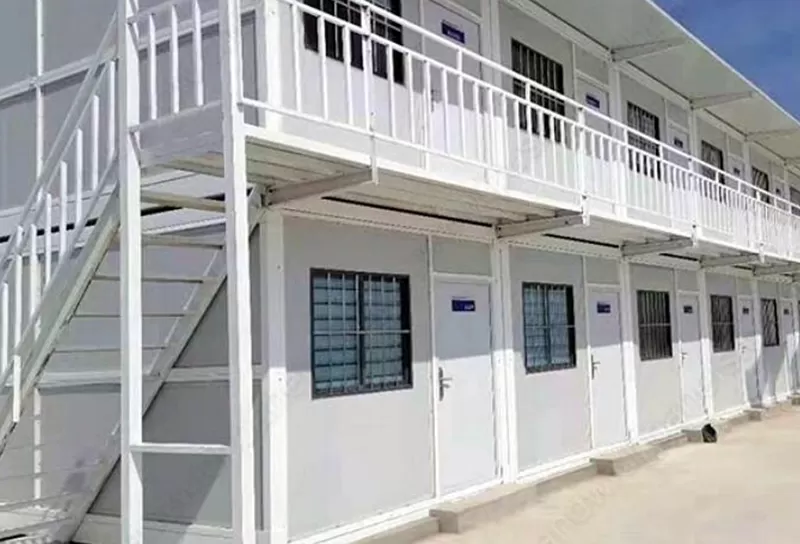

Mobile foldable container hosue

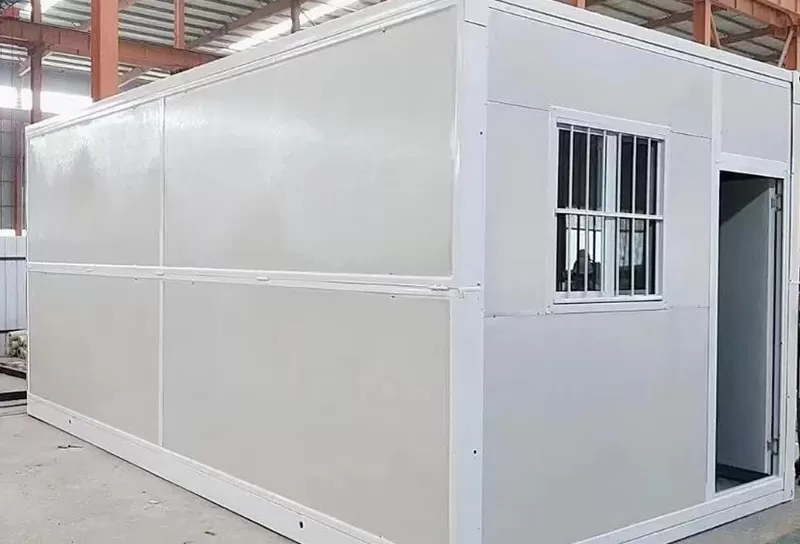

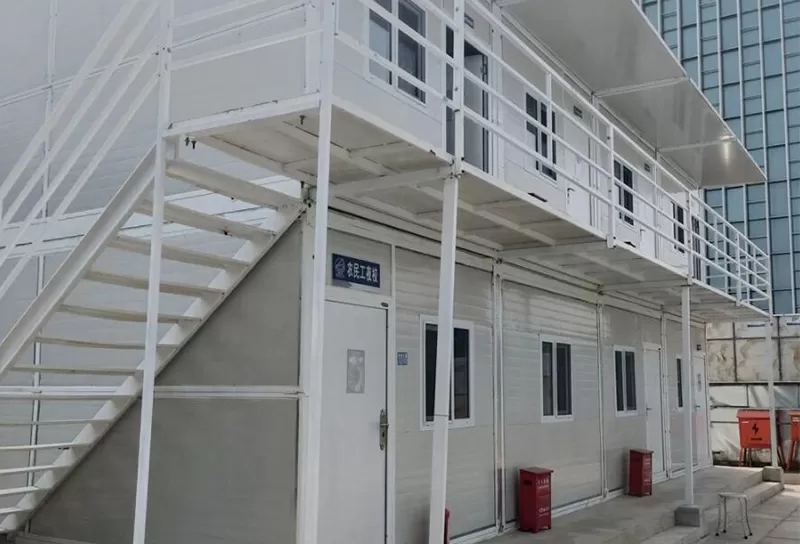

Mobile foldable container hosue

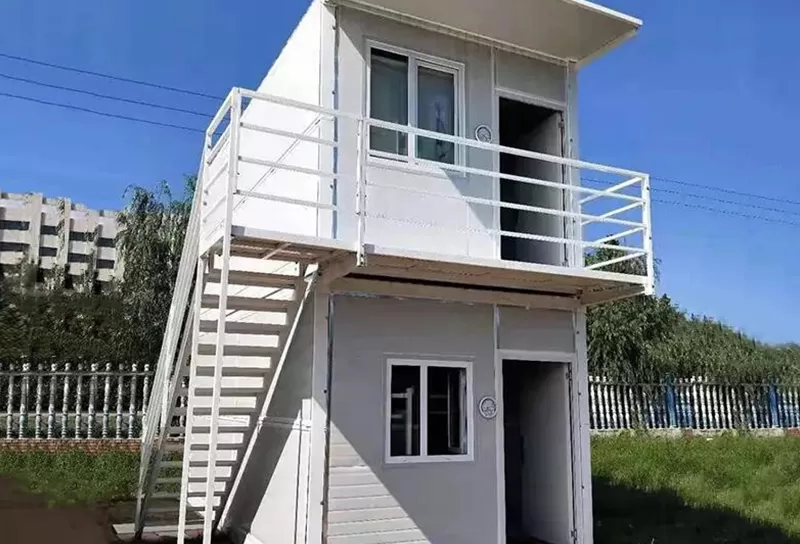

Mobile foldable container hosue
